ADASTRA 42.5M DESIGNED BY JOHN SHUTTLEWORTH

Scroll down

Adastra is the 140' (42.5m) Trimaran lanched in China, and built at McConaghy'S Zhuhai Facility, China for a Hong Kong client for long range ocean voyaging. Designed by John Shuttleworth Design.

"One of the world's most amazing super yachts, that could spell the future for efficient long range cruising" Boat International



ADASTRA TRI Gallery


ADASTRA 42-5m 01
ADASTRA 42-5m 02
ADASTRA 42-5m 03
ADASTRA 42-5m 04
ADASTRA 42-5m 07
ADASTRA 42-5m 10
ADASTRA 42-5m 11
ADASTRA 42-5m 15
ADASTRA 42-5m 16
ADASTRA 42-5m 14
ADASTRA 42-5m 13
ADASTRA 42-5m 09
ADASTRA 42-5m 08
ADASTRA 42-5m 06
ADASTRA 42-5m 05
ADASTRA 42-5m 18
ADASTRA 42-5m 20
ADASTRA 42-5m 17
ADASTRA Details 01
ADASTRA Details 08
ADASTRA Details 09
ADASTRA Details 03
ADASTRA Details 02
ADASTRA Details 07
ADASTRA Details 06
ADASTRA Details 05
ADASTRA Details 04
ADASTRA Interior 01
ADASTRA Interior 02
ADASTRA Interior 03
ADASTRA Interior 05
ADASTRA Interior 07
ADASTRA Interior 06
ADASTRA Interior 04
ADASTRA Interior 08
ADASTRA Interior 16
ADASTRA Interior 13
ADASTRA Interior 14
ADASTRA Interior 15
ADASTRA Interior 12
ADASTRA Interior 11
ADASTRA Interior 09
ADASTRA Interior 10
ADASTRA Interior 17
ADASTRA Interior 18
ADASTRA Test 04
ADASTRA Test 03
ADASTRA Test 05
ADASTRA Test 01
ADASTRA Test 02
ADASTRA 42-5m 12

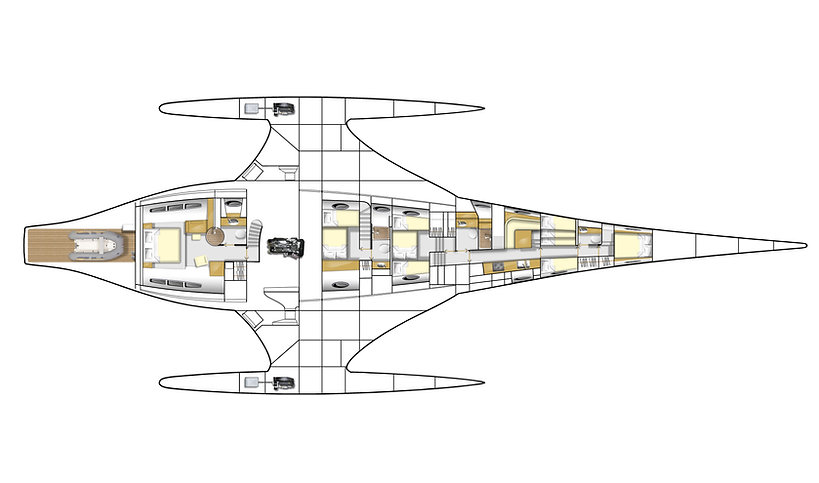

3 Cabin Layout

Deck Layout

Saloon Layout

Cabin Layout

Adastra SPECIFICATIONS

Length Overall
Length Waterline
Beam
Draft
Guests on Board
Crew
Displacement

Naval Architect

Interior Designer



GENERAL

Main Engine

Outrigger Engines

Fresh Water

Fuel Tanks

Speed Max

Range at 17 knots

42.5m
42m
16m
1.12m
9
5-6
49tonnes

John Shuttleworth

Jepsen Designs

1X 1150hp

2 X 110hp

2700L

15,000L

22knots

4000miles

“Adastra” is the result careful design, planning and discussion with the owners, to build a yacht that meets the needs of a very experienced ocean voyaging couple and their family, and to provide the level of comfort and style that would be expected in a yacht of this class and size. No effort has been spared in the challenge to produce a beautiful yacht that will have low fuel consumption and yet provide excellent sea keeping qualities and luxurious accommodation. “Adastra” takes the power trimaran concept further than has ever been attempted before, previous vessels like “Earthrace” and “Cable and Wireless” were stripped out record breaking machines. The challenge of turning this concept into a viable luxury yacht has led us to further research and to develop new thinking on stability and comfort at sea for this type of craft.  Extensive tank testing and radio controlled model tests in waves have been carried out to analyze stability and performance. Outrigger height has been optimized for ease of motion at sea, and a new outrigger shape has been developed to increase stability in waves. We have undertaken a state of the art structural analysis of all the major components in the yacht in order to achieve the light weight required for very low fuel consumption.  All this has resulted in the exceptional vessel that was recently launched by McConaghy boats in Zhuhai, China.



Adastra's 16 metre beam creates a spacious saloon area on the main deck which offers superb views through a panoramic window and accommodates a lounge area, dining table, and navigation station.  A forward facing door through the saloon window gives easy access to a large sunbed on the foredeck. The aft deck has a sofa and bar area to port and a dining area to starboard, further aft of this there is space for a 4.9 metre tender and directly below is a garage which can store a 3.1 metre tender.  The garage door has been designed to fold out and create a large dive platform.  Extra space has been created below deck by slightly flaring the central hull just above the waterline. This area has been split into two sections with a full-width master cabin located aft with access from the deck saloon, and two further guest cabins, accommodation for the crew, and the galley located forward of the engine compartment.  Adastra offers comfortable accommodation for nine guests and up to six crew members.  The main helm station, which has seating for two, is positioned in a raised pilot house situated between the aft deck and the saloon area and forms part of the cross beam structure.



The vessel has a fully automated fuel management system which includes an Alfa Laval system for cleaning the fuel.



The anchoring system is unique with 3 anchors all driven by carbon fibre drum winches run by hydraulics.  The primary anchor is a custom 130kg Bruce style anchor that deploys out of the starboard wing.  The bow anchor is 80kg and deploys out of the bow with a carbon fibre arm.  The third anchor is 60kg which deploys out of the port wing and will be used as a stern anchor.



The Superstructure is carbon fibre with Nomex honeycomb core, the hull is Glass/Kevlar foam sandwich and the interior is light weight oak cabinetry using honeycomb panels.  To help reduce weight, virtually every aspect of the boat is custom built. This includes carbon fibre hatches, portlights, ladders and even hinges, which are all built specifically for the vessel.
